A digital stop
watch built around timer LM555 and 4-digit counter MM74C926 with
multiplexed 7-segment LED display. MM74C926 consists of a 4-digit
counter, an internal output latch, npn output sourcing drivers for
common cathode, 7-segment display and an internal multiplexing
circuitry with four multiplexing outputs. The counter advances on
negative edge of the clock. The clock is generated by timer LM555. The
circuit works off a 5V power supply. It can be easily assembled on a
general-purpose PCB. Enclose the circuit in a metal box
with provisions for four 7-segment displays, rotary switch S1, start/stop switch S2 and reset switch S3
First, reset the circuit by pressing S3 so that the display shows "000". Now open switch S2 for the stop watch to start counting the time. If you want to stop the clock, close S2. Rotary switch S1 is used to select the different time periods at the output of the astable multivibrator.
First, reset the circuit by pressing S3 so that the display shows "000". Now open switch S2 for the stop watch to start counting the time. If you want to stop the clock, close S2. Rotary switch S1 is used to select the different time periods at the output of the astable multivibrator.

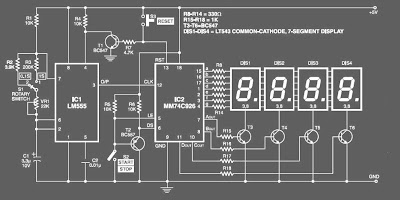

Circuit Diagram of Digital Stop Watch
Skema Rangkaian Stop Watch Digital Tampilan 7 Segmen
7 segment
Seven Segment is 8 pieces of LED array is arranged in such a way that was shaping up to 7 segments and 1 point that can be used to show the pattern numbers and some letters. there are two types of seven-segment LED Seven segment of the Common Anode (CA) and Common Cathode (CC).
On
picture above is the layout, naming seven segment each segment and 8
illustrate the fruit is packed as the LED array LED Common Anoda (CA)
and an array of LED Common Cathode (CC). segemen seven controllers can
be done directly, or through a pattern such as a driver IC 74LS47 to
seven segment CA and 74LS48 to seven segment CC.
